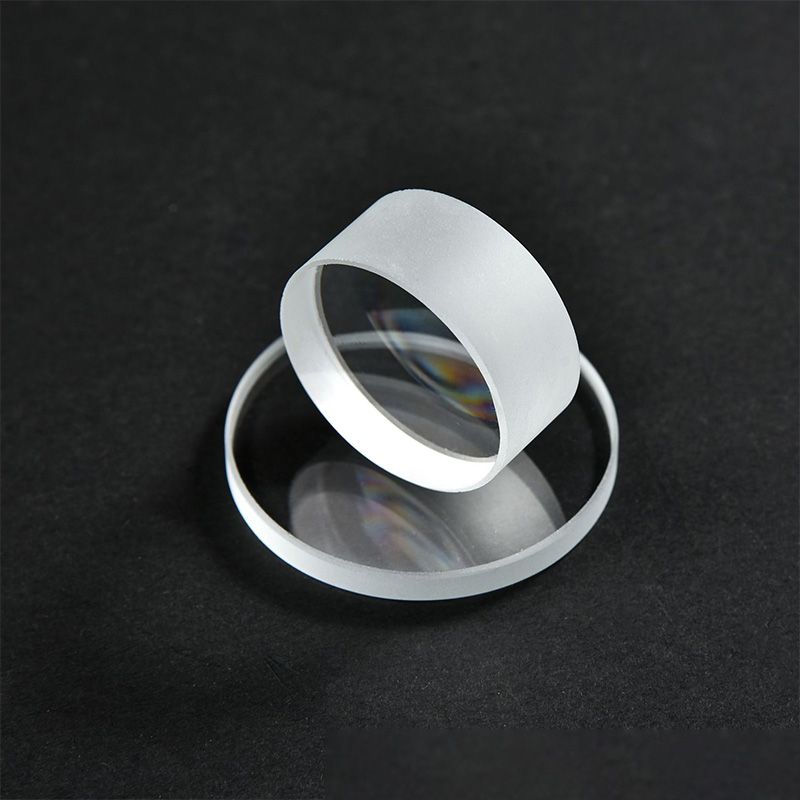

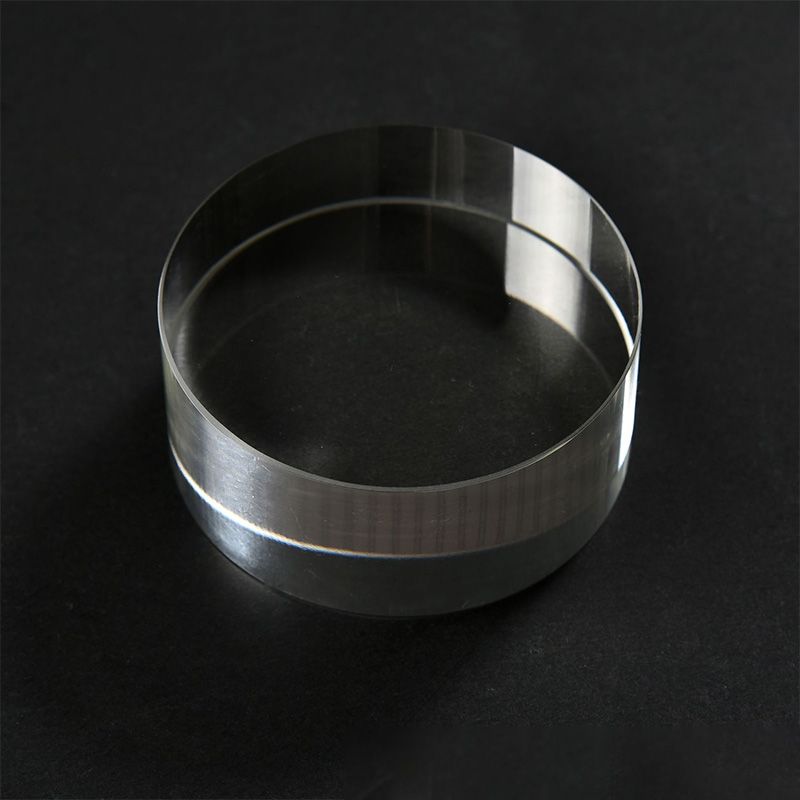

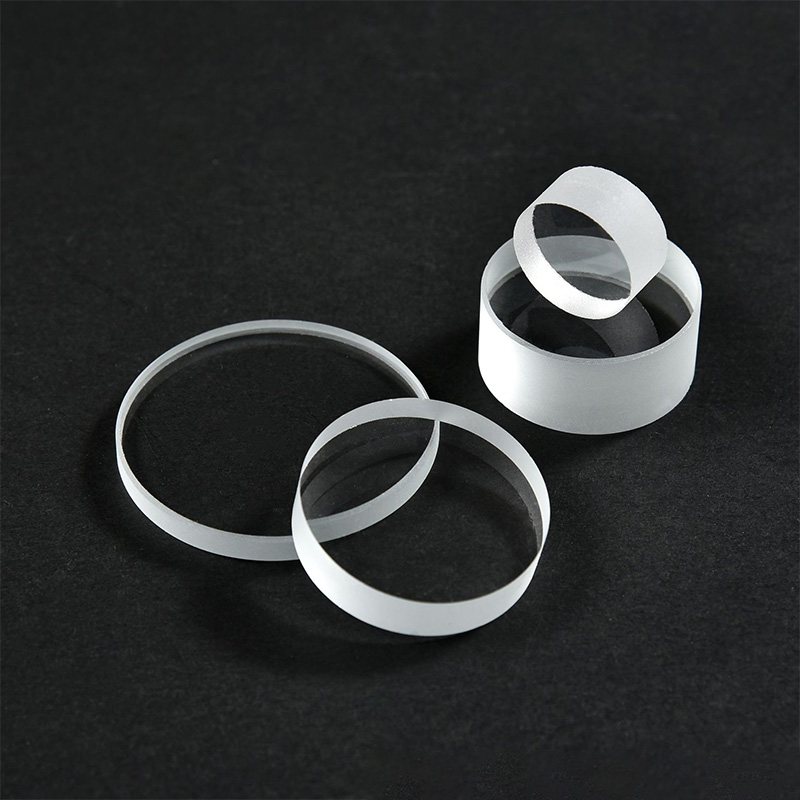

Round Sight Glass

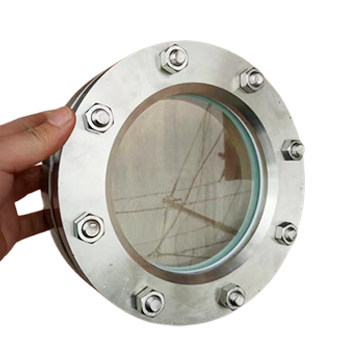

Round sight glass used in chemical pipe
Round sight glass, also called circular glass panel and round glass disc, is commonly used in industry pipe, high pressure tank, boiler and flanges for viewing the liquid flow and level indicator.
The material can range from soda lime glass, borosilicate glass, aluminosilicate glass to quartz, according to the working condition. The soda lime glass suitable for less than 150℃ temperature situation. Borosilicate glass can beat high temperature like 430℃ and high pressure 400bars. Aluminosilicate glass pressure resistance is best and quartz glass can bear 1200℃ high temperature. Quartz glass also have good transparency for UV light.
We can also drill holes on the round sight glass for more convenient in installation.

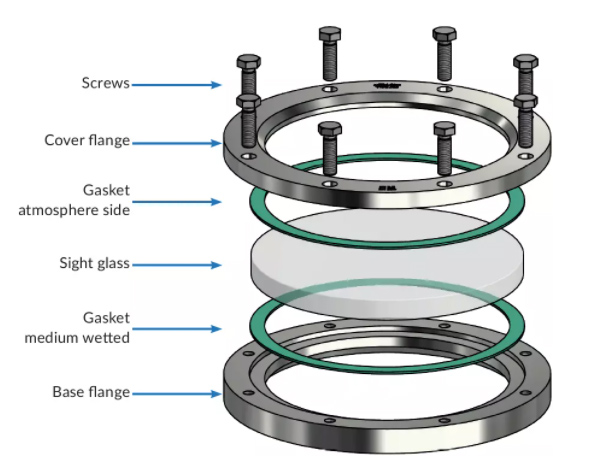

How the round sight glass installed
Specification
Material: soda lime glass, borosilicate 3.3 glass, borosilicate 4.2 glass, aluminosilicate glass, quartz glass.
Edge: grinding and polishing, chamfering.
Technology: tempered and nor tempered.
Standard: DIN7080.
Diameter: 5-500mm.
Thickness: 0.5-100mm.
Common size of round sight glass
| Glass | |
| Diameter mm | Thickness mm |
| 31.75 | 12.7 |
| 40 | 12 |
| 45 | 10 |
| 45 | 12 |
| 50 | 10 |
| 50 | 12 |
| 60 | 10 |
| 60 | 12 |
| 60 | 15 |
| 63 | 10 |
| 63 | 12 |
| 63 | 15 |
| 70 | 12 |
| 80 | 12 |
| 80 | 15 |
| 80 | 20 |
| 90 | 10 |
| 100 | 10 |
| 100 | 15 |
| 100 | 20 |
| 100 | 25 |
| 110 | 20 |
| 120 | 10 |
| 125 | 15 |
| 125 | 20 |
| 125 | 25 |
| 150 | 15 |
| 150 | 20 |
| 150 | 25 |
| 150 | 30 |
| 170 | 15 |
| 175 | 20 |
| 175 | 25 |
| 175 | 30 |
| 200 | 20 |
Advantages
Our round sight glass meet the requirements of DIN7080.
Acid and alkali resistant.
We can supply various sizes.
Polishing and grinding edge are both available.
Lead time short because we have enough raw material stocks.
Quality steady because we store one batch raw material for 2 years quantity.
Application
Flange sight glass
Double window sight glass
Industry, petro and chemistry pipe
Boiler
High pressure tanks
 |  |  |  |

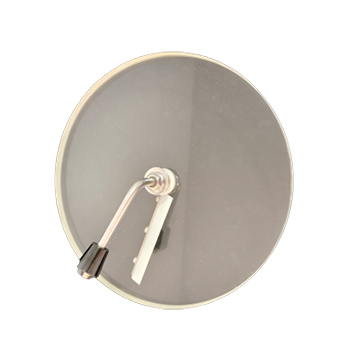

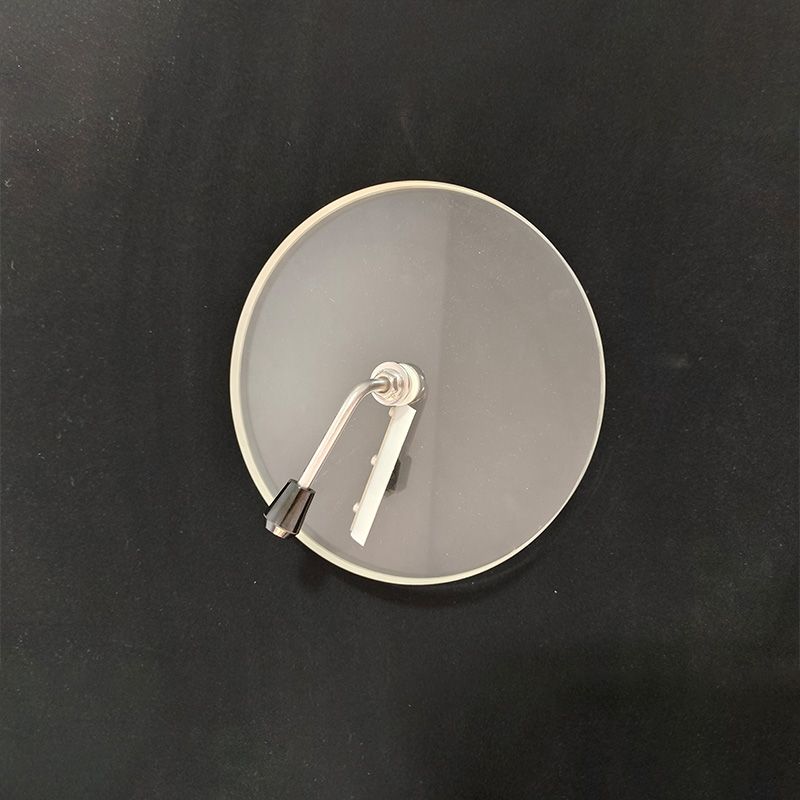

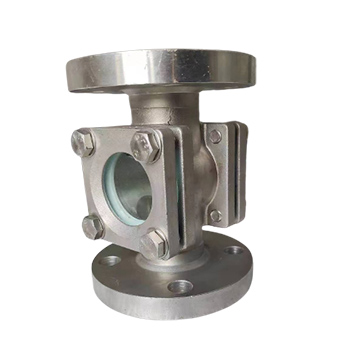

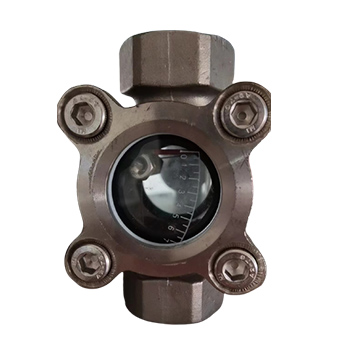

| Glass used in double window sight glass | Glass used in sight glass | Round glass used in flange sight glass | Boiler sight glass with flapper |
